AVP-6000 Series / AVP-6510W Series

SKU : AVP-6000 Series / AVP-6510W Series
Belt-type vacuum packaging machine, ideal for food, meat, seafood, vegetables and industrial products. Built with full stainless-steel body, equipped with a color touch panel and 10 programmable settings. Adjustable conveyor angle (up to 20°), customizable chamber size, and optional features such as detachable belt, bi-active sealing, waterproofing, and liquid-pack vacuum timer — delivering high hygiene, flexibility and efficient vacuum packing for various bag and pouch sizes.

Product description

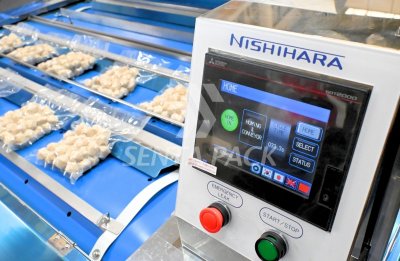

Nishihara AVP-6000 / AVP-6510W Series
Belt Type Vacuum Packaging Machine

Products for packaging

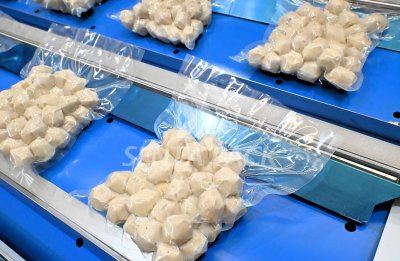

Pickles, Tsukudani(Foods boiled in soy sauce), Deli foods, Cooked beans, Kamaboko(Fish sausage), Fish fillet, Cut vegetables, Sausage, Ham, Processed meat products, Processed marine products, Industrial products.

Features

  • By using a large screen color touch panel, it is simpler to understand the status of ongoing works and mechanical failures
  • 10 program types can be registered.
  • The body is made of stainless steel. (The chamber is of AL anodized.)
  • Up to 20 degrees of belt angle can be selected in 5 steps.
  • The chamber can be customized to suit the products.

Options

  • Detachable belt.
  • Bi-active sealing. (From both top and bottom side sealing for thick aluminum bags)
  • Waterproof feature (Washable with water excluding some areas)  The  use of high pressure washer and detergent is not allowed.)
  • 3-stage vacuum timer is equipped for the liquid deaeration packaging.
  • Vacuum pressure control

 Specifications

ModelAVP-6000 SeriesAVP-6510W
Bar Belt TypeSingle barDouble bar
Dimension ( W x L x H )1,788 x 1,850 x 1,250 (mm)1,788 x 1,850 x 1,250 (mm)
Seal length1,150 mm1,150 mm x2
Clearance below seal400mm / 500mm220mm x2 (The case of double seal) | 500mm x1 (The case of single seal)
Seal width10mm,12mm,14mm10mm,12mm,14mm
Chamber depth 70mm / 100mm
100mm
Vacuum pump2,670 L/min2,670 L/min
Power supply3phase 200V Body 1.7kw | Vacuum pump 5.5kw3phase 200V Body 3.2kw | Vacuum pump 5.5kw
Weight490kg (Body) | 157kg (Vacuum pump)540kg (Body) | 157kg (Vacuum pump)
Remarks.Big bag 3-5 kgSmall products pouch up to 1kg


 Machine Introduction
