New Arrival

PACRAFT-TT-9CW

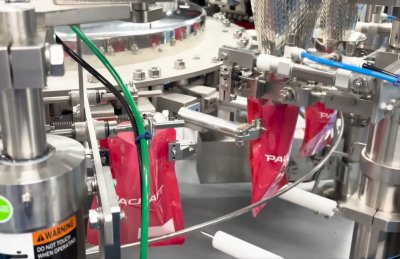

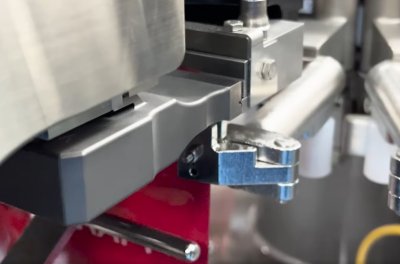

TT-9CW is a widely popular machine for retort and wet product packaging, ideal for pet food applications. It features an optional ultrasonic sealer that delivers smooth, strong, and defect-free pouch seals, and supports a wide range of optional accessories to meet diverse customer needs and production lines.

Categories : PACKAGING MACHINE , RETORTED FOOD & LIQUID PACKAGING MACHINES

Brands :PACRAFT

Product description

PACRAFT TT-9CW
High Speed Pre - made Pouch Filler / Sealer

Applications

Shelf-stable food, delicatessen, frozen foods, pre-cooked rice, juice, seafood,liquid detergent, and many others.

Description

Model	TT-9CW
Machine Dimension	W 2,197 × L 3,094 × H 1,873 mm
Capacity	Max. 90 ppm
Pouch Size	W: 80 150 mm , L: 120 230 (300) mm
Pouch Material	Various laminated pouches, PE pouches
Pouch Style	Flat pouches, stand-up pouches, and pouches with press-to-close
Filling Method	Various pumps available depending on product
Air Evacuation	Press type
Sealing Method	2 heat sealing stations & 1 cooling station (3-stage heat/heat/cool sealing method)
Electric Power	7.5 kVA
Air Consumption	0.5 MPa, 700 L/min (ANR)
Accessories	Product feeding hopper Product discharge conveyor Pouch opening follow-up guide Product counter Heater disconnection alarm Pouch opening detection device
Options	Date printer Air squeeze device Tapping device Stand-up pouch bottom opening device N gas flush device Zip open-close device Fill pause mode Seal area cleaning Pouch recycle Double pouch detection Various filling devices Pouch pick-up position detection Product in seal detection
