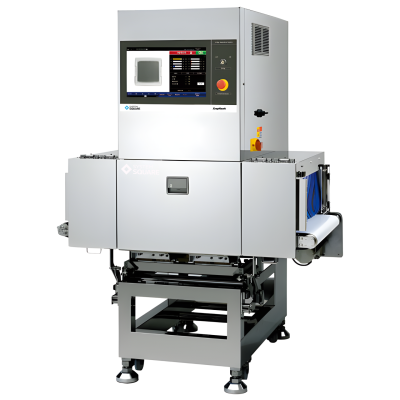

X-ray SX2-5376W

X-ray SX2-5376W
Applicable to inspection of large products.

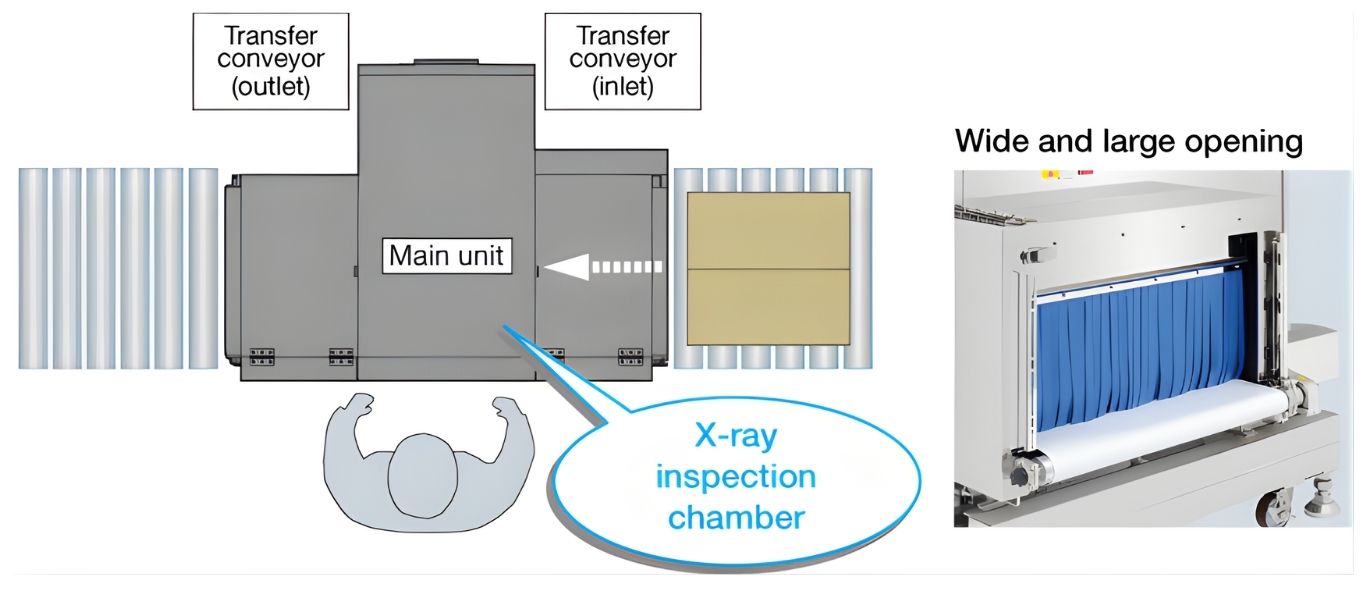

• Inspection example

   สินค้าประเภทกล่องสามารถผ่านสายพานได้

• For big products

  เหมาะสำหรับกล่องขนาดใหญ่ ถุง ถาด etc.

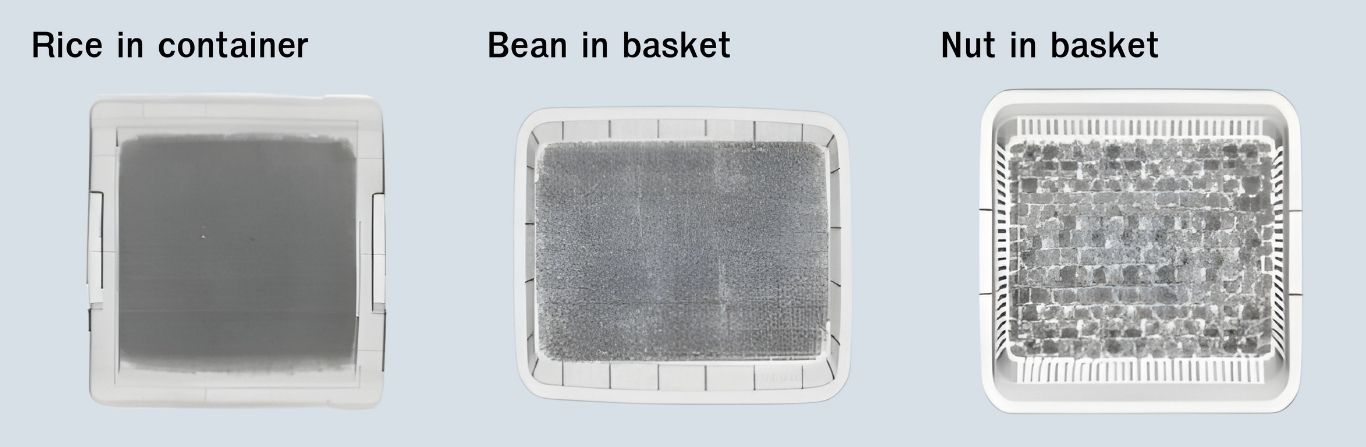

• Inspection image sample

  แม้เป็นสินค้าขนาดใหญ่ก็สามารถตรวจสอบได้ด้วยภาพที่คมชัด


• Specifications
  W (waterproof)


  Model	SX2-5376W
  Dimension of inspection product *1	Maximum passage width 521 mm. Maximum passage height 220 mm.
  Weight capacity	20 kg *2
  Conveyor speed	10 - 30 m/min *2
  Belt width	560 mm.
  Detectable material	Iron or stainless-steel ball (Φ0.5mm), stone, glass, hard bone, high density plastic, etc. *3
  Display unit	15.6 inches-wide TFT color LCD (with touch panel)
  Structure	Main unit/Base: All stainless-steel (SUS304)
  Pass line	750 ± 50 mm.
  Max. X-ray output	Tube voltage(Max.): 75kV, Tube current (Max.): 8.0mA (Max: 300W)
  Operating environment	Temperature: 0 to 35, Humidity: 30 to 85%, No dew condensation allowed. (It is necessary to clean the filter periodically.) *5
  Weight	540 kg.
  Main power supply	AC100V±10%/AC200V±10%, 1.5kVA, 50/60Hz (In case with Cooling unit: AC200V±10%, 2.5kVA, 50/60Hz)

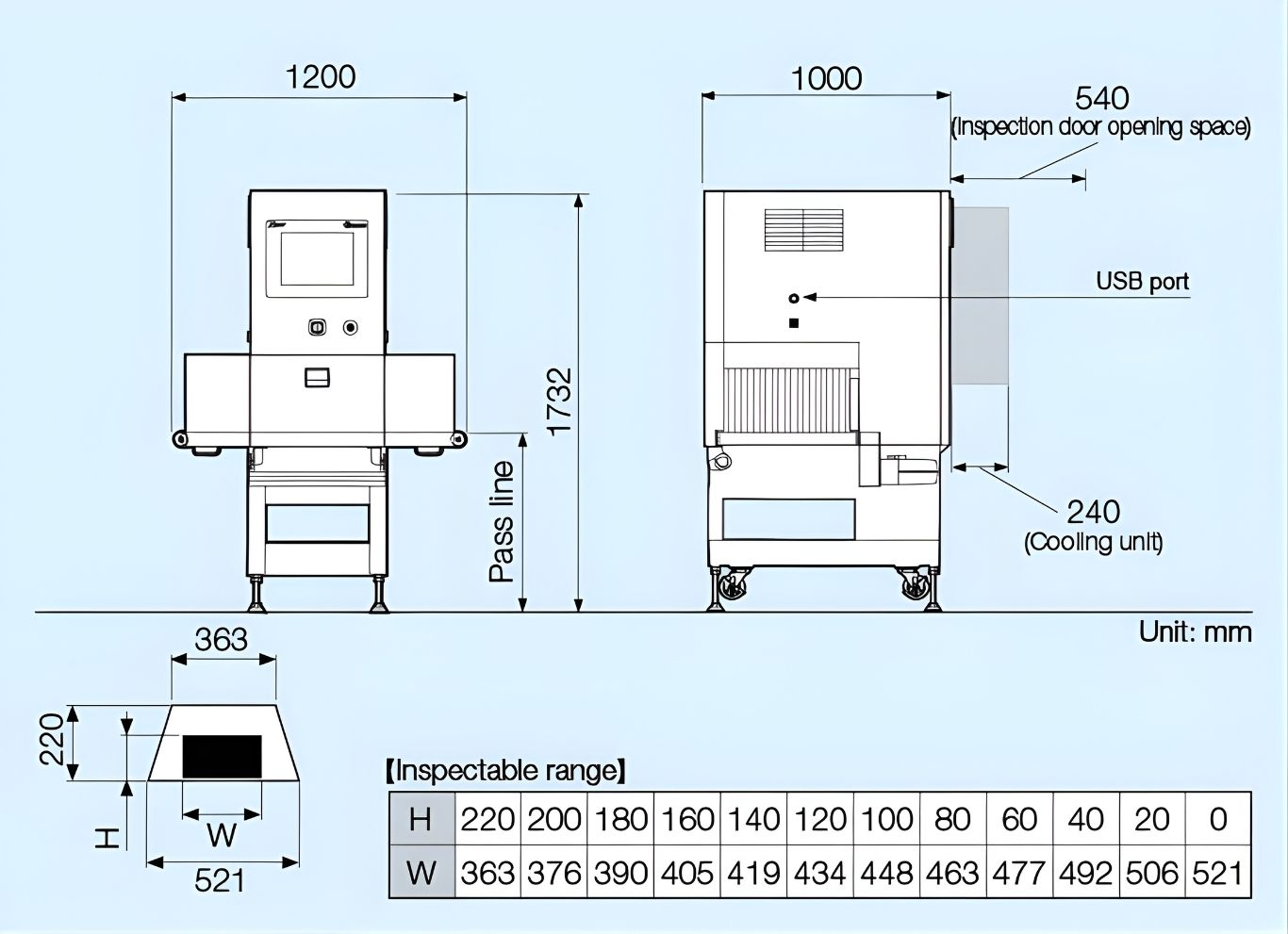

• Appearance figure
