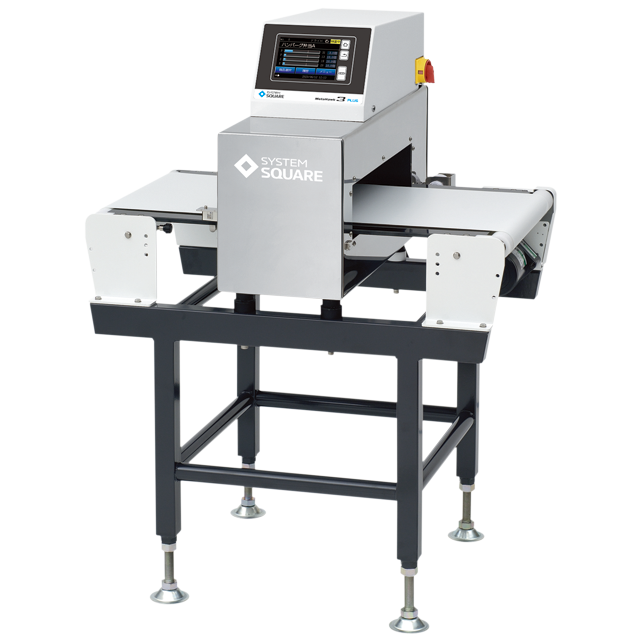

Model : SD3P-45Type

For inspection of products contained in larger trays

Categories : INSPECTION , METAL DETECTOR

Product description

Specifications

D (non-waterproof) / W (waterproof)

Model	4506	4508	4510	4512	4515	4518
Maximum passage width（mm）	450
Maximum passage height（mm）	60	80	100	120	150	180
Detection sensitivity（mm）FE	Φ0.4	φ0.45	φ0.5	φ0.55	φ0.6	φ0.7
Detection sensitivity（mm）SUS304	Φ0.7	φ0.8	φ0.9	φ1.0	φ1.1	φ1.2
Conveyor speed	24m/min (50Hz)
Conveyor size	800mm (length)×350mm (belt width)
Upon detection of metal	Belt stopped, buzzer warning or automatic sorting (option)
Weight capacity	3kg
Operating environment	Temperature: 0 to 40, Humidity: 30 to 75%, No dew condensation allowed.
Main power supply	AC100V±10%/AC200V±10%, 50/60Hz, 200VA
Weight（kg）	109	107	108	109	112	115

*The detection sensitivity represent the values when only a test piece is fed over the belt surface.The detection sensitivity depends on the product and/or operating environment.Please make sure that something such as products are not going to hit the inside of the aperture.The specifications are subject to change without prior notice due to improvement.

Appearance figure
