PACRAFT - TT-8CR- Pre-made Pouch Filler / Sealer

The PACRAFT TT-8CR Pre-made Pouch Filler / Sealer is widely used for retort and wet product packaging applications. Engineered with solid construction and state-of-the-art PACRAFT design, it delivers reliable, high-speed productivity. The machine supports a wide range of optional features, allowing customization to meet diverse customer and production requirements.

Categories : PACKAGING MACHINE , RETORTED FOOD & LIQUID PACKAGING MACHINES

Brands :PACRAFT

Product description

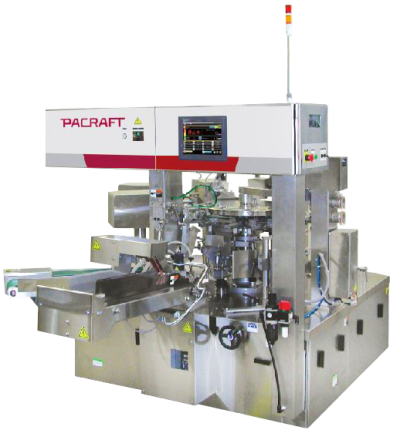

PACRAFT TT-8CR
Pre-made Pouch Filler / Sealer

Popular & widely used retort / wet product fill & seal packaging machine for pre-made pouch.
Unsurpassed productivity with solid construction and state-of-the-art TYJ design.
Wide range of optional features available to meet with customer requirements.

Applications

Shelf-stable food, delicatessen, frozen foods, pre-cooked rice, juice, seafood,liquid detergent, and many others.

Specifications

Model	TT-8CR
Machine Dimension	W 1,954 × L 2,675 × H 2,211 mm
Capacity	Max. 40 ppm
Pouch Size	Width ( mm ) 80-220 (90-230) (100-240) , Length ( mm ) 130-300
Pouch Size	W: 80 220 (230) mm , L: 130 300 mm
Pouch Material	Various laminated pouches, PE pouches
Pouch Style	Flat, stand-up & floating gusset Optional PTC zipper or corner spout styles
Filling Method	Various pumps depending on filling product
Liquid Filling Volume	Choice of 300, 500 & 1,000 ml interchangeable pumps
Air Evacuation	Press type
Sealing Method	3-stage heat/heat/cool sealing method
Electric Power	5.5 kVA
Air Consumption	0.5 MPa, 250 350 L/min (ANR)
Accessories	Product feeding hopper Product discharge conveyor Pouch opening follow-up guide Product counter Heater disconnection alarm Pouch opening detection device
Options	Date printer Air squeeze device Tapping device Stand-up pouch bottom opening device N gas flush device Zip open-close device Fill pause mode Seal area cleaning Pouch recycle Double pouch detection Various filling devices Pouch pick-up position detection Product in seal detection
